Water Quality Monitoring Buoy

1.Introduction to Water Quality Monitoring Buoy Functions

Water Quality Monitoring Buoy is a device designed to collect water quality parameters in real time for use in lakes, rivers and open water environments.

1.Water Quality Monitoring BuoySFA unattended acquisition system integrating data acquisition, storage, transmission and management.It is an automatic hydrological measurement and reporting system for industrial and agricultural production, tourism, urban environmental monitoring, geological disasters, flood control, water scheduling, power station and reservoir water situation management, etc.; the powerful upper computer software can remotely observe real-time water and rain information, and has database, reports, download and other functions.Users can also use this complete meteorological software to further process and analyze the recorded data.

2.The water quality monitoring system consists of six parts: water quality sensor, data collector, communication system, power supply system, overall support, and water quality monitoring platform.It can simultaneously monitor water temperature, pH, dissolved oxygen, conductivity, ammonia nitrogen, turbidity, COD, etc., and a variety of water quality factors.The data collector has data acquisition, real-time clock, data timing storage, parameter setting and standard 2G/4G (GPRS) communication functions.

2.Water Quality Monitoring Buoy product features

1.Easy to deploy: All types of probes are highly integrated and easy to install; free cloud platform services are provided, and the system is quickly launched;

2.Easy maintenance: After the equipment is installed, it can work by itself, without manual duty, and the normal operation of the equipment can be ensured through remote monitoring;

3.Easy to expand: All sensor probes use a unified communication protocol, which can quickly connect to the original equipment and quickly expand monitoring parameters;

4.Low power consumption: The device can operate for a long time in a low power consumption state, increasing the convenience of the device;

5.Real-time: The data monitored by the device is transmitted to the cloud platform in real time, improving the timeliness of environmental data feedback.

3.Water Quality Monitoring Buoy Technical Parameters

1.Main parameters

2.The main parameters of optional sensors

Appropriate testing solutions can be customized according to the actual situation of the customer and the technical indicators to be achieved.

Note: The sensor cannot be installed inverted or horizontally when installed, and should be installed at least 15 degrees above the angle of inclination.

The working environment of the above water quality sensor is 0-50℃, <0.3Mpa.

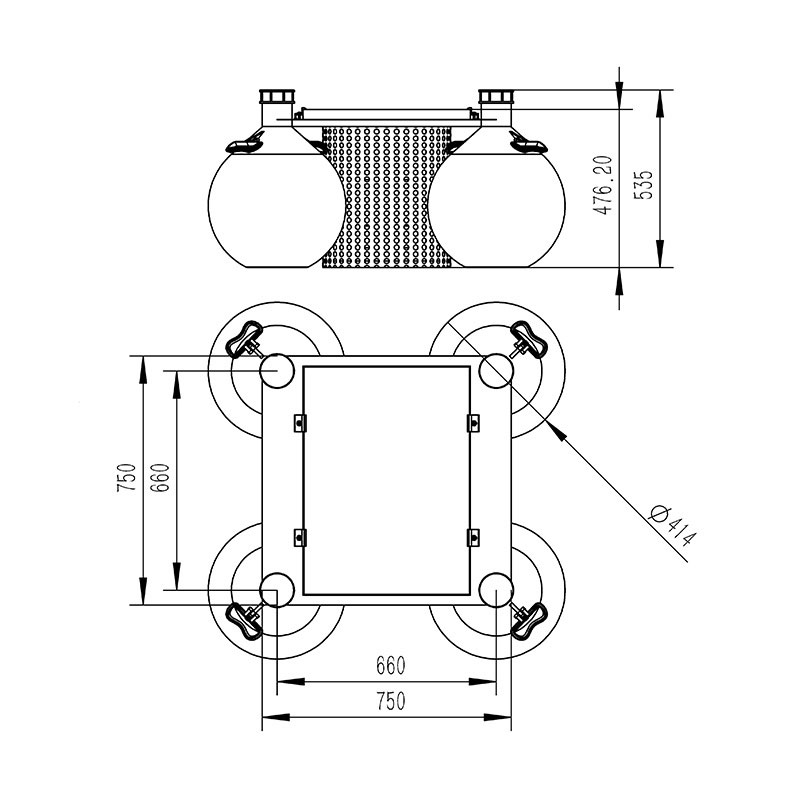

4.Water Quality Monitoring Buoy product size diagram

5.Water Quality Monitoring Buoy equipment installation requirements

1.Stay away from high-power radio transmitters

2.Stay away from high-voltage transmission lines and microwave radio transmission channels

3.Try to be close to the data transmission network

4.Stay away from strong electromagnetic interference
