Dust Monitoring System

Technical indicators: TSP, PM2.5, and PM10 are the same.Each unit can only measure one parameter.

1.Introduction to Dust Monitoring System

Dust Monitoring System is used for dust and particle monitoring and measures the particle concentration in the ambient air.Dust Monitoring System (β-ray) uses the β-ray method to monitor the concentration of atmospheric particulate matter.The implementation standards of this product are as follows:

HJ/T 374—2007 Technical requirements and detection methods of total suspended particulate sampler

HJ/T 93-2013 Technical requirements and detection methods for environmental particulate matter (and) samplers

HJ 1100-2020 Technical Guidelines for Automatic Monitoring of Particulate (and) Beta-ray Methods in Ambient Air

2.How Dust Monitoring System Works

The working principle of beta ray absorption method is adopted.C-14 is used as the emission source, which emits constant high-energy electrons.Sample air passes through the injection tube with a constant flow through the cutter, and the particles are trapped on the filter membrane.When the β-ray passes through the filter membrane, the energy decays.The mass of the particulate matter is calculated by measuring the attenuation amount, and the concentration of particulate matter in the ambient air under the actual state is calculated based on the sampling flow rate, sampling time and filter membrane area.This equipment is suitable for online monitoring of particulate matter such as construction sites, road construction, factory boundaries, etc.

3.Dust Monitoring System Functions and Features

1) Use intelligent heating technology to dynamically heat and dehumidify the sampled air to improve measurement accuracy.

2) Use the PID constant current algorithm to adapt the pump speed regulation to ensure stable and accurate sampling air flow.

3) Use the five-level calibration method to ensure that the concentration of PM10 can be accurately measured regardless of the height.

4) Use full zero point calibration to ensure that each measurement is not affected by the uniformity of the filter paper.

5) The sampling period is continuously adjustable, the minimum period is 3 minutes, and the maximum period is 60 minutes.

6) Supports paper-saving mode, filter paper can be recycled according to usage conditions, which can effectively extend the use time of filter paper.

7) Support local data query and display, and can query data in any time period.

8) Support wired network communication and 4G wireless communication

9) Support remote system upgrade and parameter settings

10) Support local data storage, and the data storage time can reach 365 days.

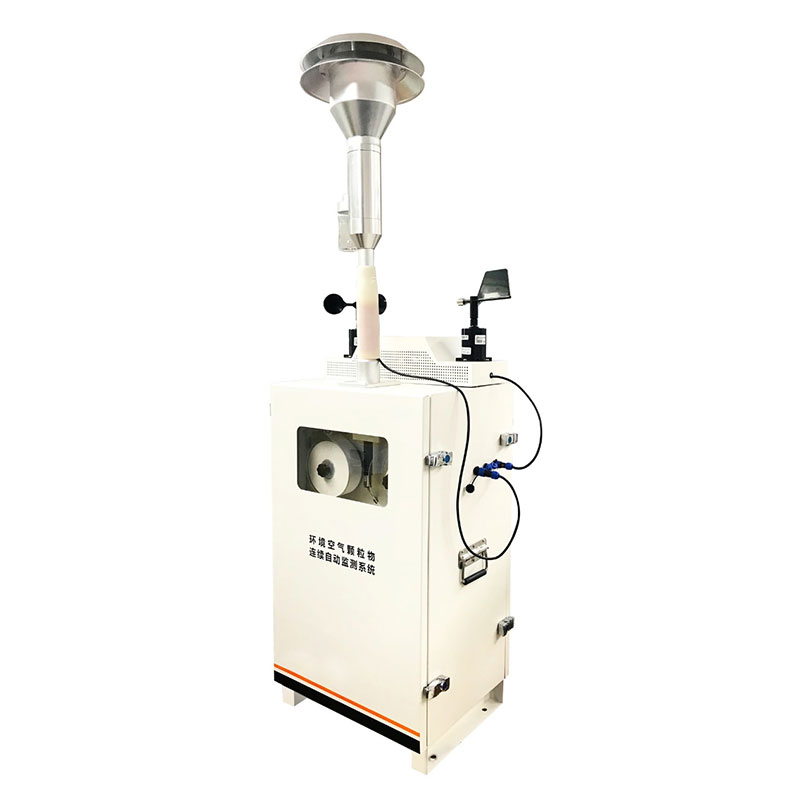

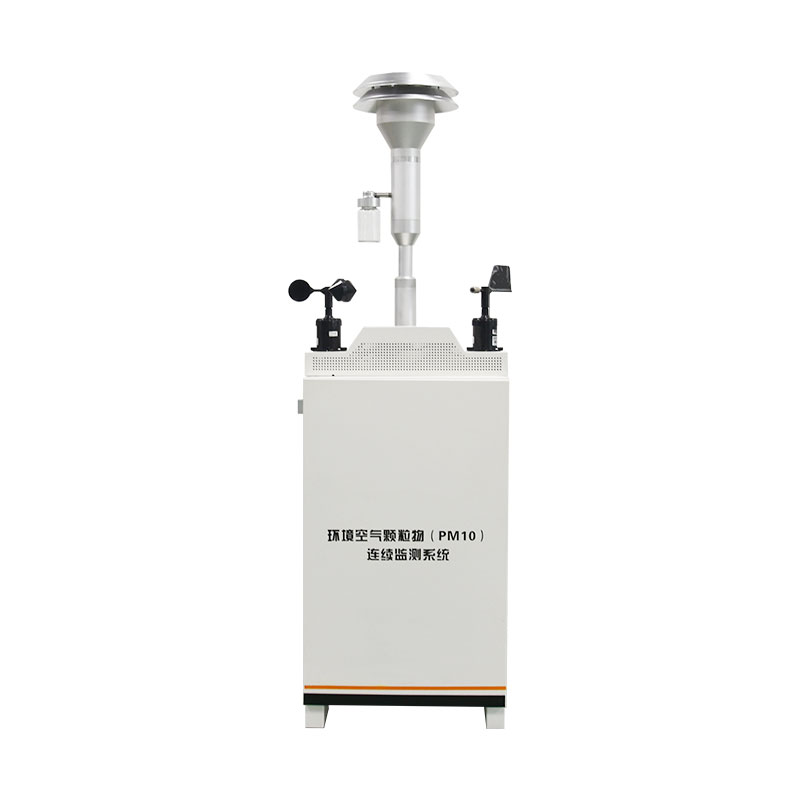

4.Dust Monitoring System product appearance

5.Dust Monitoring System Technical Specifications

1) Mechanical particle cutter to achieve accurate cutting of particle size.

2) Use intelligent heating technology to dynamically heat and dehumidify the sampled air to improve measurement accuracy.

3) Use the PID constant current algorithm to adapt the pump speed regulation to ensure stable and accurate sampling air flow.

4) Use the five-level calibration method to ensure that the concentration of PM10 can be accurately measured regardless of the height.

5) Use full zero point calibration to ensure that each measurement is not affected by the uniformity of the filter paper.

6) The sampling period is continuously adjustable, the minimum period is 3 minutes, and the maximum period is 60 minutes.

7) Support local data query and display, and can query data in any time period.

8) Support wired network communication and 4G wireless communication

9) Support remote system upgrade and parameter settings

10) Support local data storage, and the data storage time can reach 365 days.

11) 7-inch LCD screen, direct setting and operation on site, system settings.

12) It has the function of fog cannon linkage, and the opening and closing of fog cannons and other control equipment can be controlled by setting linkage thresholds.

13) It can store 12 months of minutes of data and copy it through a USB flash drive.

14) It has sampling pipeline and relative humidity calibration functions to effectively suppress the impact of humidity on measurement results.

Dust Monitoring System System Component

The system is mainly composed of particulate matter and meteorological monitoring units, data acquisition and processing units, video character overlay units, data transmission units, data display platforms, linkage control units, etc., to realize construction site environmental monitoring, data upload, data display, statistical analysis, video overlay and other functions, perfectly connect with the government monitoring platform, and realize 24-hour supervision of the construction site environment.

1.Particle monitoring unit

Continuous automatic monitoring of PM10, the environmental data is collected once an hour, and uploaded to the data center and monitoring platform in real time to statistics

and analysis;

2.Meteorological Five Parameters Monitoring Unit

The entire set of equipment is equipped with monitoring of environmental parameters such as temperature, humidity, wind speed, wind direction, and atmospheric pressure, providing meteorological parameters for the later analysis of monitoring data;

3.Data acquisition and processing unit

This unit is the center of the entire system, which determines, checks and stores the collected monitoring data; the collected monitoring data is based on statistics

It is required to conduct statistical analysis and process, report the processed data to the cloud platform, and control the localized display of parameters to realize the integration of environmental parameters and video surveillance screen;

4.Data display platform

The monitoring data of this system can not only be reported to the data cloud platform of governments at all levels, but also to the beta ray online monitoring platform of Fengtu Instrument.It can also be integrated with the on-site monitoring video.The on-site environmental parameters are displayed on the video surveillance screen in characters, realizing the integration of local environmental parameters and local videos, stored with the video, anti-tampering, and permanently exists once superimposed.

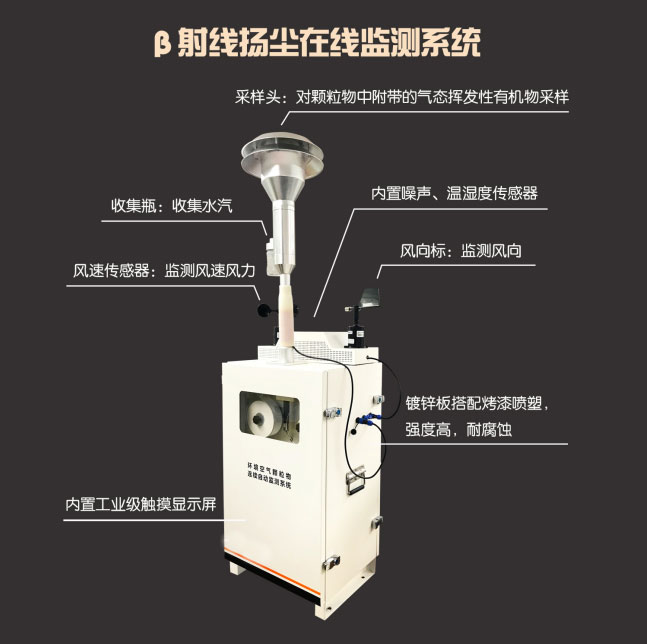

Dust Monitoring System equipment main components:

1.Equipment main case: dustproof, windproof, rainproof, sunproof;

2.Particle sample head: physical cutter + heating dehumidifier + water vapor condenser

3.Industrial main control board + 7-inch touch screen: equipment system operation and operation

4.Particle sensor: PM10 sensor for light scattering

5.Temperature and humidity sensor: detect ambient temperature and humidity

6.Wind speed and direction sensor: meteorological data monitoring

7.Data transmission module: wireless acquisition and transmission module

8.Integrated circuit board: highly integrated, unified output

9.Power supply system: power supply, empty opening, grounding wire

10.Support: 1.6 meters outdoor fixed rectangular bracket

11.Outdoor P10 LED display, 96×48 dot matrix (can be customized according to demand).

Meteorological monitoring unit

The entire set of equipment has monitoring of environmental parameters such as atmospheric pressure, temperature, and humidity.The post-analysis of data provides meteorological parameter guarantee

temperature:

Measurement range: -45~80℃;

Resolution: 0.1℃;

Accuracy: ±0.5℃;

humidity:

Measurement range: 0~100%; Accuracy: ±3%;

Resolution: 1%;

Wind speed: Measuring principle: mechanical

Measuring range: 0~30m/s Starting wind: ≥0.8m/s

Accuracy: ±(0.3+0.03V) (V: Wind speed)

wind direction:

Measuring principle: Mechanical measurement range: 8 directions

Starting wind power: ≥0.8m/s Accuracy: ±3 degrees Response and stability: ≤1min

Air pressure:

Measurement principle: semiconductor

Measuring range: 300-1200hPa

Resolution: 0.1hpa

Accuracy: ±0.3hpa

Response and stability: ≤1min

Main technical characteristics of the equipment

1.Have passed CPA and CCEP certification and have certification certificate.

2.Work normally within an environment of -30~60℃, 0~90%RH (no condensation)

3.According to custom requirements, the equipment can expand other monitoring interfaces on the box.

4.Mechanical particle cutter to achieve accurate cutting of particle size

5.PID constant current algorithm ensures constant sampling flow and correct cutting curve

6.It has sampling pipeline and relative humidity calibration functions to effectively suppress the impact of humidity on measurement results; a built-in unique optimization algorithm improves the accuracy of instrument measurement results.

7.7-inch LCD display, direct setting and operation on site, system settings

8.Support remote upgrade of product firmware and modifying product configuration, no need to operate on site, saving time and effort

9.Support 4G/network/WIFI communication methods to ensure real-time data transmission

10.Equipped with all-weather outdoor sensors to continuously monitor noise and meteorological parameters

11.Upload according to the HJ212 standard by default, and can also be customized to upload according to the requirements of the customer platform.

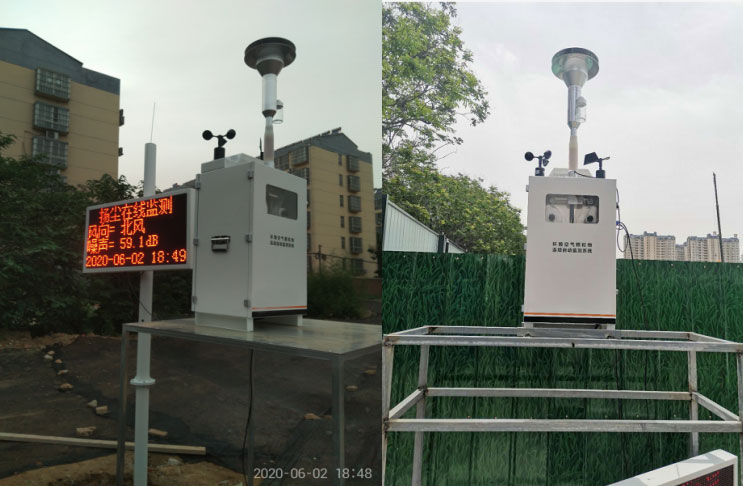

Dust Monitoring System product installation example
