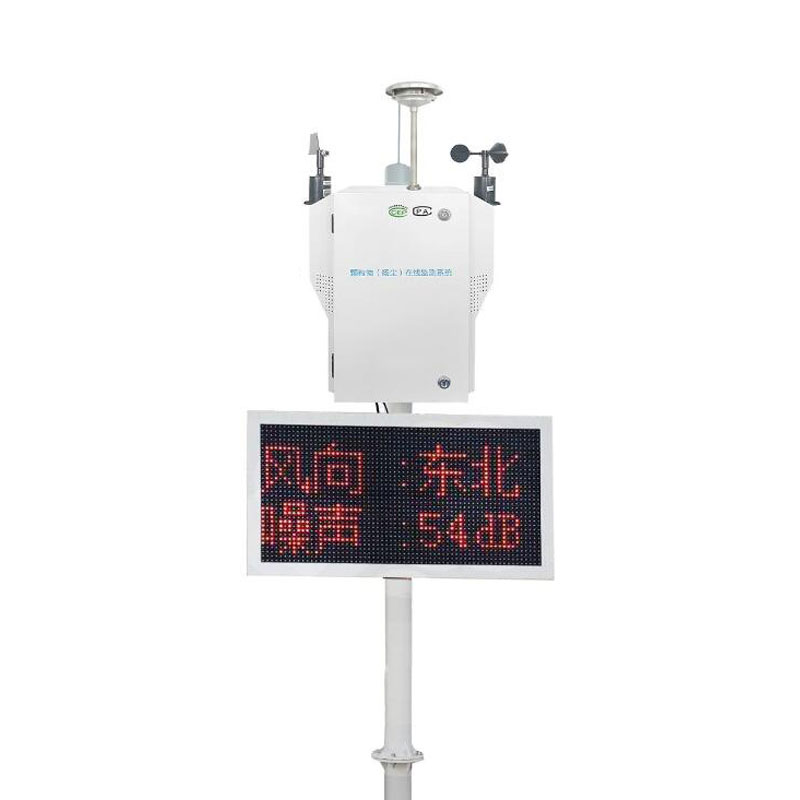

Particulate Monitor

1.Particulate Monitor PM sensor

Particulate Monitor measures particulate pollution such as dust, smoke, fog and fumes, locating the sources of dust and fumes in the workplace air.

1.Laser technology (light scattering principle, optical particle size cutting, no physical particle size cutter)

2.PM2.5/PM10/TSP three-channel simultaneous output

3.Repeatability ≤10%, measurement accuracy ≤15%, resolution 1ug/m3;

4.Particle size range PM: 0-10000ug/m3;

5.Flow rate 2.0L/min ±5%, pump suction method, constant flow rate, temperature and humidity range -40~+123.8℃, <100%RH

6.Sampling time: The default interval time is 20 seconds (adjustable)

7.Communication interface customization 485, standard MODBUS, TTL, customization

8.Calibration does not require frequent calibration, it is recommended to calibrate one year.

9.Purge system can be optionally installed in cleaning

10.Power supply 12V

11.Host power consumption 10W

12.Usage environment -12℃~60℃; <90%RH (no condensation); 86~106kPa

13.Storage ambient temperature: –20~80℃, humidity: 0~90%RH;

2.Particulate Monitor Temperature and Humidity Monitoring Unit

The temperature and humidity monitoring unit consists of two material conductors of different components.When there is a temperature gradient at both ends, current will pass through the loop.At this time, there is an electromotive force - thermoelectric force between the two ends.The homogeneous conductors of two different components are thermoelectrodes, the higher temperature is the working end, and the lower temperature is the free end.When the temperature of the measured medium at the working end changes, the thermoelectric potential changes accordingly.The thermoelectric potential is sent to the computer for processing to obtain the temperature value.Humidity monitoring units are generally made of polymer film capacitors.When the ambient humidity changes, the dielectric constant of the humidity sensor changes, causing its capacitance to also change, thereby obtaining humidity.

The product uses standard 35mm rails, industrial-grade chips, and high-precision temperature and humidity probes to ensure excellent reliability, high precision and interchangeability of the product.It adopts the RS485 hardware interface (with lightning protection design), and the protocol layer is compatible with the standard industrial Modbus-Rtu protocol.Compatible with various host platforms (PC software, touch screen, PLC, configuration king).

1.Temperature sensor range: -40~+80℃ Accuracy: ±0.5℃

2.Humidity sensor range: 0～100% Accuracy: ±3%

3.DC power supply: 12VDC

4.Maximum power consumption: 0.4W

5.Long-term temperature stability: ≦0.1℃/Y

6.Long-term humidity stability: ≦1%/Y

7.Output signal: RS485 (MONDBUS protocol)

3.Particulate Monitor Wind Speed and Direction Monitoring Unit

The wind speed and wind direction sensor (transmitter) uses a high-precision magnetic sensitive chip inside, and a low-inertia light metal wind vane is used to respond to the wind direction, with good dynamic characteristics.The meteorological wind speed sensor (transmitter) adopts the traditional three-point cup meteorological wind speed sensor structure.The wind cup is made of carbon fiber material with high strength and good start-up.The built-in signal processing unit of the cup body can output corresponding wind speed signals according to user needs.It can be widely used in meteorological, ocean, environment, airports, ports, laboratories, industrial, agricultural and transportation fields.

4.Particulate Monitor Noise Sensor

The noise sensor has a built-in capacitive electret microphone that is sensitive to sound.The sound wave vibrates the electret film in the microphone, causing a change in capacitance and generating a tiny voltage corresponding to it.This voltage is then converted into a voltage of 0-5V, which is accepted by the data collector through A/D conversion and transmitted to the monitoring chip.

The sensors used by our company use high sensitivity pickups.The three parts of power supply, induction probe, and signal output are completely isolated, the signal is stable and the accuracy is high.It has the characteristics of wide measurement range, good linearity, easy to use, easy to install, and long transmission distance.

1.DC power supply: 12V-24V DC

2.Maximum power consumption: 0.4W

3.Output signal: RS485 output

4.Response time: ≤2S

5.Measurement range: 30dB-130dB

6.Resolution: 0.1dB

7.Measurement error: 3%Fs

8.Frequency weighting characteristics: A weighting; frequency response: 35Hz-20Khz

9.Working temperature: -20-60℃

5.Particulate Monitor atmospheric pressure sensor

1.Absolute measurement range: 10-1200mbar

2.Maximum power consumption (RS485 output): <4W

3.DC power supply (default): 12-24V DC

4.Resolution (bar pressure): 0.012 mbar

5.Accuracy (air pressure): ±1.5mbar (@25℃1035mbar)

6.Working range: 0-40℃/0-80RH%

7.Output signal: RS485 (Mondbus protocol)

6.Particulate Monitor Internet of Things Access Server

1.High performance

It adopts a professional communication SOC processor, dual-core and four-thread, with a main frequency of up to 880MHz, and is equipped with large-capacity Flash standard.Based on a powerful hardware platform, feature-rich software can be implemented to meet diverse monitoring applications.

2.Rich features

The deeply customized JYun operating system supports GPRS, RJ45, ZigBee, LoRa, WIFI, NB-IOT and other communication methods.Flexible networking and secure data transmission.

3.Stable and reliable

The motherboard and components meet industrial standards, support wide voltage inputs of 9 to 36V, and the ambient temperature range can reach -20 to 65℃.It has network connectivity monitoring software, which can automatically reset the system when there is a failure, and supports remote restart by sending remote commands.

4.Support remote one-click upgrade; local storage, power outage and other functions;

5.Cloud management

It provides a free cloud management platform, which can remotely centrally manage devices and realizes functions such as status monitoring and unified configuration.Private cloud platforms can be deployed according to user needs.

6.Module extension

Supports the expansion of ZigBee/3G/4G module to achieve wireless Internet access and no wiring installation, suitable for applications in remote environments.
