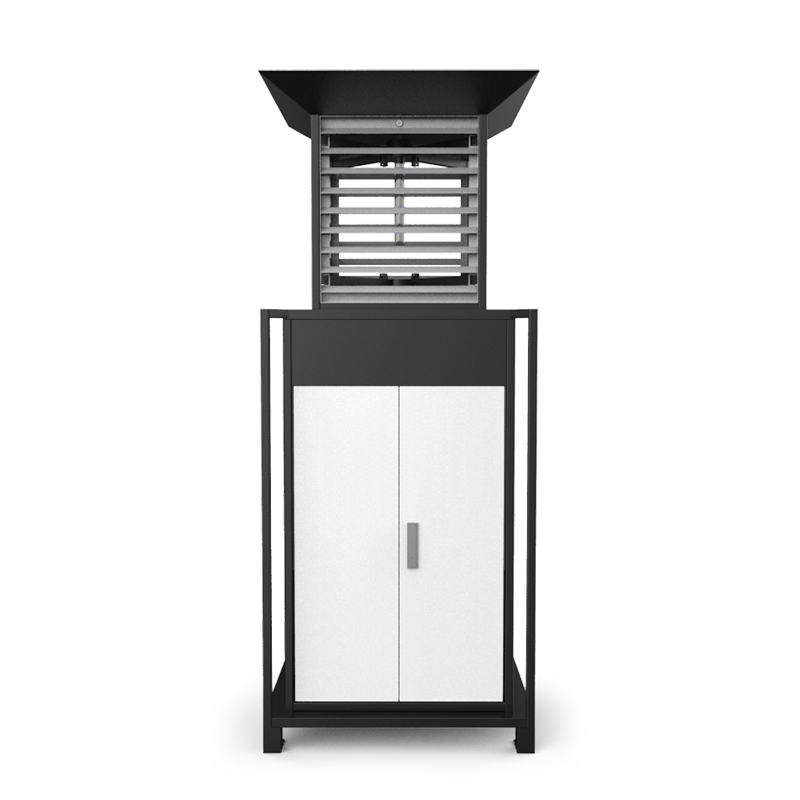

Corn two-spot armyworm monitor

1.Corn two-spot armyworm monitor product description

Corn two-spot armyworm monitor is used to monitor corn two-spot armyworm and can be used on corn, alfalfa, cotton, soybean and other plants.Corn two-spot armyworm monitor is specially developed for corn insect situation measurement and reporting.The lamp uses modern optical, electrical and CNC technologies to realize the functions of automatic far-infrared processing of insect bodies, automatic photography, and automatic operation of the entire lamp.Under no supervision, system operations such as insect luring, insect killing, taking photos, collecting, and drainage can be automatically completed.Widely used in agricultural corn planting.

2.Corn two-spot armyworm monitor performance characteristics

1.The overall structure adopts a stainless steel plastic-sprayed shell design.

2.Adopt optical, electrical and CNC technologies for automatic control.

3.Color 7-inch Chinese LCD capacitor touch screen operation; can be set and controlled in time periods, automatic and manual photography can be taken; Android system intelligently controls.

4.The 1200W pixel image acquisition device is built-in to collect images of insect bodies on the insect disk in real time through the camera.

5.The insect body is sprinkled and spread it on the insect tray, and the insect body that is collected is vibrating and dispersed and leveled.

6.The instrument has a built-in grating counting device (non-image recognition counting), which can record the number of insects in real time and upload them to the platform.

7.It has automatic cleaning function, which can sweep the finished insects and insect bodies out of the shooting area and enter the insect body collection chamber.

8.Various data and alarm parameters of the instrument can be uploaded to a remote server through the network for easy maintenance and management.

9.Built-in GPS and Beidou positioning functions to view device sites and other data in the map.

10.The insect-induced light switch, heating pipe switch, insecticide chamber and drying chamber clearing, vibration motor switch and other related functions can be controlled through the platform.

11.The upper and lower far infrared insect body treatment chambers can more effectively complete insecticide and drying.

12.Temperature control of far-infrared insect body treatment chamber: After working for 15 minutes, the temperature reaches 85±5℃, and the treatment time can be adjusted at will.

13.The mortality rate of far-infrared insect body treatment shall not be less than 98%, and the intact rate of insect body shall not be less than 95%.

14.Multi-wavelength insect-induced light source, the power of the insect-induced light is greater than 20W.

15.Light control control: Automatically turn on the lights at night, automatically turn off the lights during the day (standby).In the working state at night, it will change the working state without being exposed to instantaneous strong light.

16.Time period control: Set working time periods according to the living habits of target pests.

17.Rain control system device: a separate drainage system structure that automatically discharges rainwater, effectively separates rainworms, so that there is no water accumulation in the box.

18.Network mode: Various networking methods: 4G\WIFI\Wired can be selected at will, and can be managed online anytime, anywhere.

19.You can view device data through PC, APP, WeChat and other methods.

20.It has flow alarm function.The device can be bound to the traffic card through the platform, and alarm information can be automatically pushed when the traffic is abnormal.

3.Corn two-spot armyworm monitor technical parameters

1.Power supply: AC220V

2.Power consumption: standby state ≤5W; the whole lamp power is ≤450W

3.Insect-attracting light source: 20W black light tube (main wavelength 365nm)

4.Impact screen: At a 120-degree angle between each other, single screen size: 595±2mm long, 213±2mm wide, 5mm thick

5.Light tube starting performance: start within 5S

6.Temperature control of far-infrared insect body treatment chamber: after working for 15 minutes, reach 85±5℃

7.Insulation resistance: ≥2.5MΩ
