Water quality monitoring system
Model：FT-LSZ04
Brand：tianyi
water quality monitoring system is used to monitor water quality and collect data. It can monitor water quality parameters such as water temperature, conductivity, pH, and dissolved oxygen.
Get a Free Quote- Product details
- Related products
- Related articles
1.Water quality monitoring system product introduction
water quality monitoring system is used to monitor water quality and collect data. It can monitor water quality parameters such as water temperature, conductivity, pH, and dissolved oxygen.LSZ04 Water quality monitoring system takes water quality sensors (water temperature, conductivity, PH, dissolved oxygen) as the core.By monitoring and analyzing various water quality parameters, the collected data is transmitted to the platform side, real-time data remote viewing and remote management of equipment, and at the same time, effective over-limit alarm and intelligent processing of water quality changes.It can also express the comprehensive index of water quality based on the correlation combination between real-time water quality parameters, providing customers with a large amount of objective, detailed and effective data, which is of practical significance to solving water quality pollution problems.
At present, the LSZ04 water quality monitoring station is widely used in aquaculture, sewage treatment, reservoirs, rivers and other places.
2.Water quality monitoring system product features
1.Low-power collector: static power consumption is less than 1mA
2.Standard GPRS networking, support extended Bluetooth, and wired transmission
3.Support modbus485 sensor expansion
4.Solar charging management MPPT automatic power point tracking
5.1.5m carbon steel bracket
6.Send SMS alarm, send SMS to the specified mobile phone after exceeding the limit
7.Stainless steel protective box, corrosion-resistant and oxidation-resistant, waterproof grade IP66
8.No additional processes such as wiring, construction of stations, dispensing agents, and post-maintenance of personnel are required.Compared with the national standard station for water quality monitoring, the observation data is more convenient to use and install, and the observation data is more intuitive.
9.The system can integrate integrated meteorological environment monitoring data
3.Water quality monitoring system composition

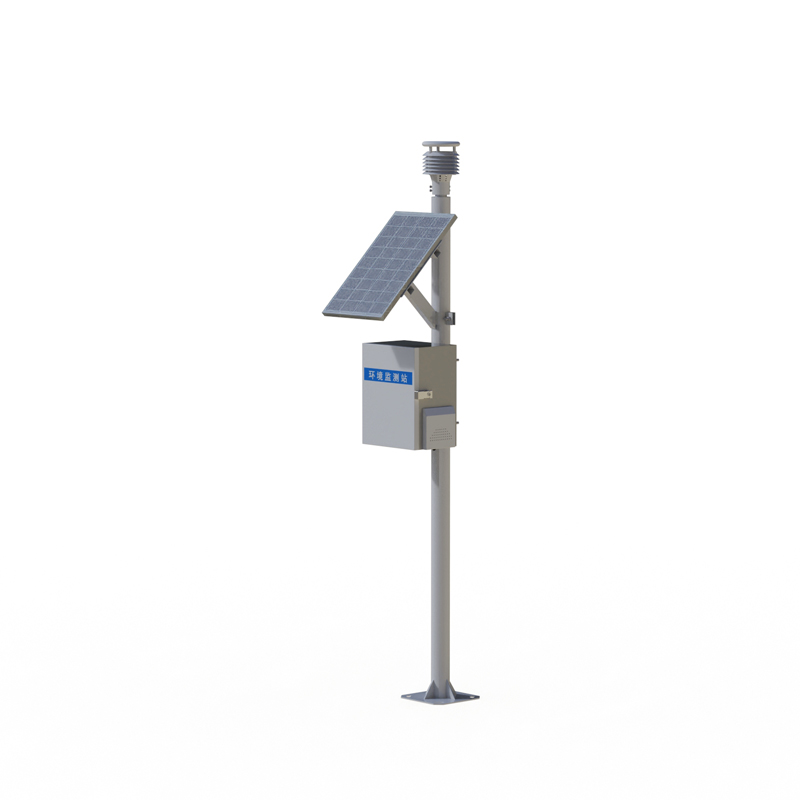

The vertical pole-type online monitoring system is mainly composed of basic support (including vertical pole, floor cage, Stainless steel anti-corrosion and corrosion-resistant protective box), power supply system, monitoring host, water quality sensor, and cloud platform.
4.Water quality monitoring system technical parameters
| Serial number | name | Measurement range | Measurement principle | Measurement accuracy | Is it standard? | Remark |
| 1 | temperature | 0~50℃ | High-precision digital sensor | ±0.3℃ | ✔ | |
| 2 | pH | 0~14 (ph) | Electrochemistry (salt bridge) | ±0.1PH | ✔ | |
| 3 | ORP | -1500mv~1500mv | Electrochemistry (salt bridge) | ±6mv | ||
| 4 | Conductivity | 0~5000uS/cm; 0~10000uS/cm | Contact electrode method | ±1.5% | ✔ | |
| 5 | Turbidity | 0~40NTU (low turbidity) | Scattering light method | ±1% | Low turbidity can be customized | |
| 0~1000NTU (medium turbidity) | Scattering light method | ±1% | Customizable | |||
| 0~3000NTU (high turbidity) | Scattering light method | ±1% | Default send | |||
| 6 | Dissolved oxygen | 0~20mg/L | Fluorescence life method | ±2% | ✔ | |
| 7 | Ammonia nitrogen | 0~100mg/l | Ion Selection Electrode Method | ±1mg | ||
| 8 | cod | 0~500mg/L | UV254 absorption method | ±5% | The default turbidity and cod are integrated; it has an automatic cleaner to prevent biological adhesion and avoid light window pollution, so as to ensure that long-term monitoring is still stable; it can set the automatic cleaning time and cleaning times, and the power consumption is 0.7W | |
| Turbidity | 0~400NTU | Scattering light method | ±1% | |||
| 9 | Suspension | 0~2000mg/L | Scattering light method | ±5% (depending on sludge homogeneity) | ||
| 10 | Chlorophyll | 0~400ug/L | Fluorescence method | R2>0.999 | With automatic cleaner, it can prevent biological adhesion and avoid light window contamination to ensure that long-term monitoring is still stable; it can set automatic cleaning time and cleaning times, and the power consumption is 0.7W |
5.Introduction to Water quality monitoring system cloud platform
1.CS architecture software platform, supports direct observation of mobile phones and PC browsers without additional software installation.
2.Support multiple accounts and multiple devices to log in
3.Support real-time data display and historical data display dashboard
4.Cloud server and cloud data storage are stable and reliable, easy to expand, and load balancing.
5.Support SMS alarm and threshold settings
6.Support map display and viewing device information.
7.Support data curve analysis
8.Support data export table form
9.Supports data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.
10.Support data post-processing function
11.Support external running of javascript scripts
