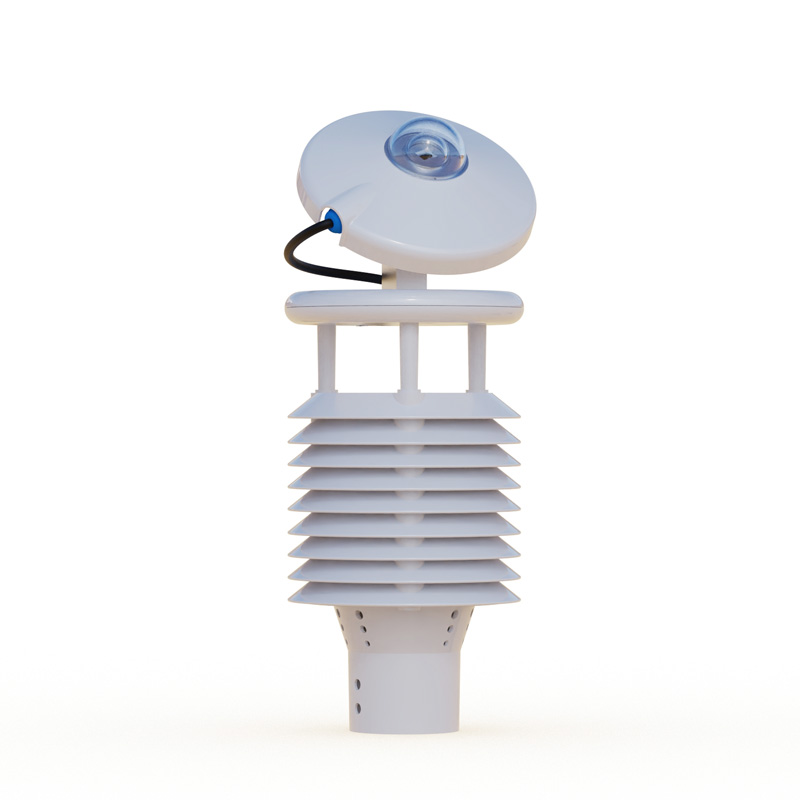

Environmental monitoring solutions for PV Systems

1.Environmental monitoring solutions for PV Systems Product Overview

Environmental monitoring solutions for PV Systems provide support for solar resource monitoring through environmental and weather monitoring tools.Meteorological environmental data is an important indicator to determine solar power generation and plays a decisive role in the quality of solar power generation.At the same time, it also provides effective data guarantee for the design of solar power stations.Our Environmental monitoring solutions for PV Systems is a new generation of integrated meteorological environmental monitoring station designed and produced in accordance with the International Meteorological WMO Organization Meteorological Observation Standards and IEC (International Electrotechnical Technical Committee) standards.

The meteorological data that can be monitored by this system include: ambient temperature, ambient humidity, atmospheric pressure (optional), wind speed, wind direction, total inclined solar radiation, backplane temperature, peak sunshine hours and other meteorological data.It has the characteristics of stable performance, high detection accuracy, and unattended, and can meet the business requirements of professional meteorological observation.

2.Environmental monitoring solutions for PV Systems product features

1.Real-time data monitoring: More than 20 types of meteorological data in the photovoltaic area can be collected and analyzed, including monitoring data such as ambient temperature, ambient humidity, atmospheric pressure, wind speed, wind direction, total inclined solar radiation, peak sunshine hours, backplane temperature, etc.

2.Integrated acquisition instrument: The integrated photovoltaic environment data acquisition instrument adopts a new generation of 32-bit MCU processor, and integrates high-precision GPS, GPRS, and Bluetooth digital chips on-board, which can accurately correct the acquisition time and perform high-precision positioning.The transmission protocol is the standard MODBUS protocol.

3.High-quality imported devices: Ambient temperature and humidity, atmospheric pressure, and internal core devices of radiation sensor are all imported from Europe and the United States to ensure high accuracy and high stability of data sources.

4.Wireless data storage: a leading wireless data storage technology.The stored data in the photovoltaic data collector can be wirelessly sent to mobile phones and PDAs for storage and analysis.

5.Multiple communication modes: Supports wired RS485, USB and wireless GPRS/Bluetooth communication methods, which facilitates customers to collect and transmit data.

6.Smart data operation and maintenance: a new generation of mobile APP operation and maintenance software.Connect to Android phones through low-power wireless Bluetooth.The supporting software supports the standard MODBUS protocol.After running the software, you can view real-time data, view historical data, change device address, adjust the sensitivity coefficient of the radiation meter, view the operating status of the collector, and set software configuration permissions.

7.Green power management: This data collector can use two power supply modes: AC220V and DC12V.It also integrates a new generation of green power management modules to achieve intelligent switching between AC and DC power supply, and the overall power consumption of low-power energy-saving design is less than 1W.

8.Integrated observation bracket: The re-optimized integrated observation bracket can support the installation of round tubes or square tubes.It is small in size and light in weight, so that on-site personnel can quickly, conveniently and simply install and debug equipment by one person.

3.Environmental monitoring solutions for PV Systems technical indicators
