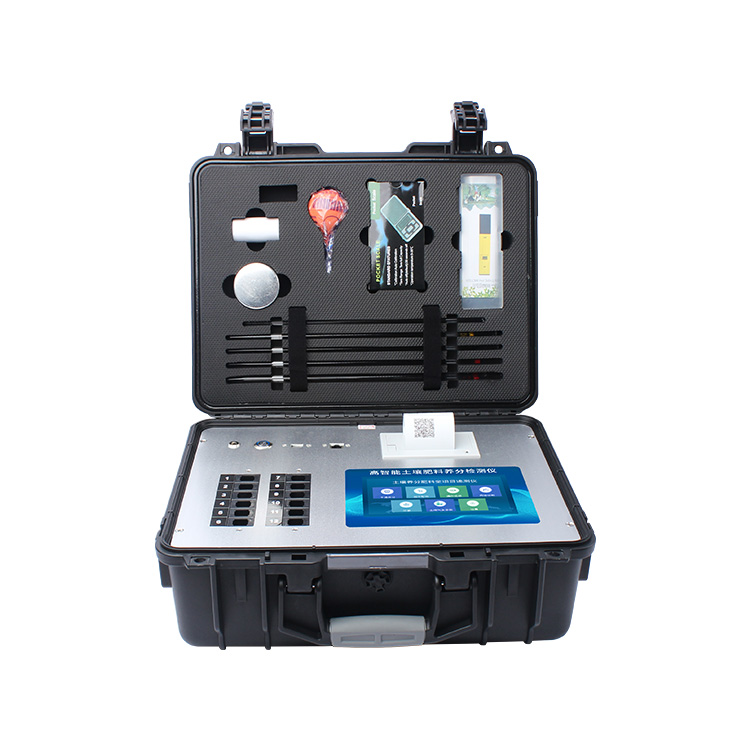

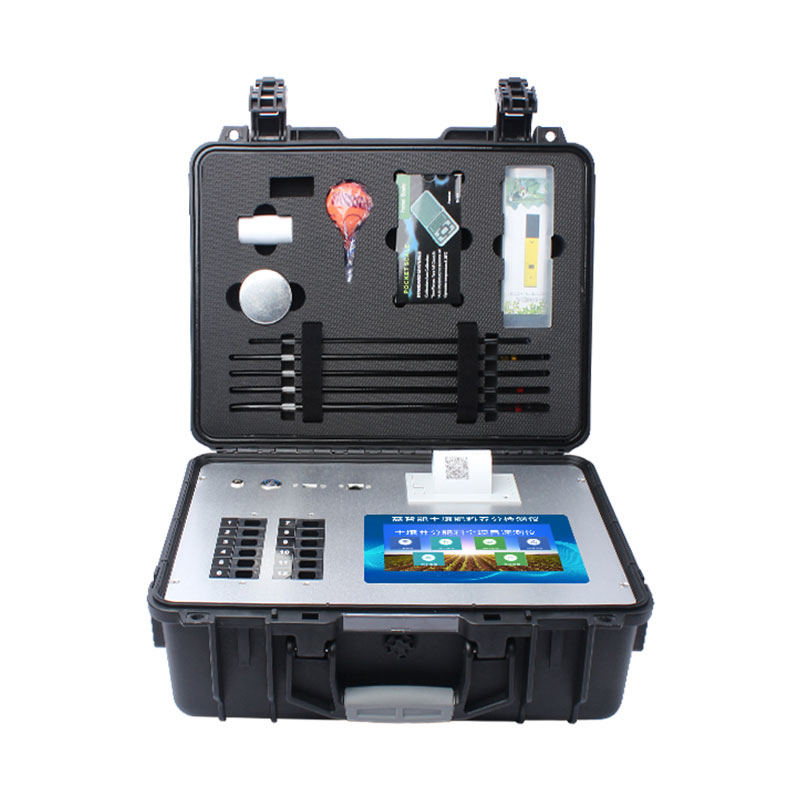

Soil nutrient Analyzer

1.Soil nutrient Analyzer product introduction:

Soil Nutrient Analyzer is used to read the light, water, nutrients and pH levels in the soil and can be used to test a variety of soil nutrient contents.Complete supporting facilities: This instrument integrates medicine, instrument and instrument, and is easy to carry.It is equivalent to a small mobile laboratory and can also be tested in the field.Suitable for soil testing and fertilization application in agricultural service departments or agricultural supplies distributors, cooperatives, fertilizer manufacturers, and large growers.

Complete testing functions: The test items are comprehensive at home and abroad.Except for standard reagents, all other types of medicines can be purchased.

It is easy to operate and fast to operate.It has a complete set of accessories and finished medicines ready to use when opened, and there is no need to configure it.

2.Soil nutrient Analyzer has many functions and complete test items:

1.Soil nutrients: soil ammonium nitrogen, soil effective phosphorus, soil fast-acting potassium, soil nitrate nitrogen, soil hydrolysis nitrogen, soil total nitrogen, soil total phosphorus, soil total potassium, soil organic matter (churrow method), soil organic matter (leaching method), pH value, salt content, and moisture.

2.Trace elements in the soil: soil calcium, soil magnesium, soil sulfur, soil silicon, soil boron, soil iron, soil copper, soil manganese, soil zinc, soil chlorine

3.Soil nutrient Analyzer test efficiency:

The medium-speed-acting N, P, K and other nutrients in soil are leached and measured at one time (drafted by the Ministry of Agriculture’s industry standard).

Test speed: Under normal proficiency, it takes 20 minutes to measure one soil sample (N, P, K) (including preparation of agents and pretreatment time for soil sample), and at the same time, three soil samples (N, P, K) are ≤40 minutes, and at the same time, 8 soil samples are ≤1 hour.

4.Soil nutrient Analyzer test error:

The soil nitrogen, phosphorus and potassium error is ≤1%, the organic matter error is ≤2%, and the trace element relative error is ≤5%

5.Functional features of Soil nutrient Analyzer:

1.This instrument integrates all functions and does not require users to install accessories, and can flexibly detect flow.

2.Android intelligent operating system, the main control chip uses ARM Cortex-A7, RK3288/4 core processor, the main frequency is 1.88Ghz, the operation speed is faster and the stability is stronger.

3.The built-in calibration function is built-in during the detection process, intelligent constant current voltage stabilization, and automatic calibration of light intensity to ensure detection accuracy.

4.The double-tied 12 detection channels can quickly detect 12 samples at one time, greatly improving the detection efficiency and reducing the detection cost.

5.The instrument is equipped with wireless wifi upload, 4G network transmission, and GPRS wireless remote transmission to quickly upload data.

6.It is equipped with a smart cloud agricultural platform.After the instrument is connected to the wireless network, the detection data can be uploaded selectively or in batches, which facilitates users to perform data management and long-term analysis.

7.The instrument has both a USB interface and an Ethernet interface, built-in large memory, and can copy data with a USB disk at any time.

8.You can log in to the cloud platform at any time to view historical data online by mobile phone

9.The built-in crop expert fertilization system can calculate the recommended fertilization amount for the target yield of more than 100 national agricultural economic crops, fruit trees, etc., and scientifically guide agricultural production based on fertilization formulas.The fertilization results of soil testing formula can be printed, and the printing content includes: crop type, fertilizer type, target yield, total demand, and recommended fertilization plans.

10.Built-in plant nutrition diagnosis standard map, and compare leaves to diagnose abundant and deficiencies based on the pictures of nutritional deficiencies in each crop.

11.4 wavelength professionally tested cold light sources (red, blue, green, orange).The light source wavelength is stable.The light source has no temperature drift phenomenon for a long time.It has a lifespan of up to 100,000 hours, good reproducibility and high accuracy.

12.The chromometric pool part uses a standard 1cm cuvette, which has no mechanical displacement or wear, and has accurate positioning of the optical path test and effectively shields external light interference, ensuring that the detection results are better than the national standard requirements.

13.The instrument system contains sample pre-processing operation video.Click the video module to watch various sample detection methods.The inspector does not need to study the manual for self-study.It is convenient and fast for the guidance and teaching, and is convenient for novices to operate quickly.

14.Built-in new generation high-speed thermal printer (no ribbon required), the printing content includes: detection unit, detection personnel, detection items, channel number, absorbance, nutrient content (mg/kg), detection time, and QR code and other information

15.Highly sensitive 7-inch true color touch screen adopts more efficient and user-friendly operation, high-definition and high-interactive display, greatly reducing the cumbersome operations and errors of traditional instruments.

16.Built-in clock function, convenient for operating time recording and long-term history tracing.

17.You can set up multiple account passwords to log in, and have an efficient UI interactive interface.Different users can freely add editing and detection information, and can be used for a long time after saving.

18.GPS function: It can record latitude and longitude during field operations to meet special user needs.

19.The built-in low voltage prompt function can clarify the power during detection to avoid offset of test data.It also has a power outage protection function, and automatically saves data when power outage, prevents data loss.

20.AC and DC dual-purpose power supply method, built-in large-capacity rechargeable lithium battery, can work continuously for more than 10 hours under full charge, and can also be connected to the on-board power supply to store electricity.

21.The instrument has Chinese and English switching functions, which can meet export requirements.

22.High-strength PVC engineering plastic suitcase design, sturdy and durable, easy to carry.

6.Soil nutrient Analyzer technical parameters:

1.Power supply: AC 220±22V DC 12V+5V (the built-in lithium battery of the instrument can also be used for on-board power supply)

2.Power: ≤5W

3.Range and resolution: 0.001-9999

4.Repeatability error: ≤0.03% (0.0003, potassium dichromate solution)

5.Instrument stability: No drift is displayed within one hour (transparency measurement); no drift exceeds 0.3% (0.003, transmittance measurement), and 0.001 (absorbance measurement) within two hours.

6.Linear error: ≤0.1% (0.001, copper sulfate detection)

7.Sensitivity: Red light ≥4.5×10-5 Blue light ≥3.17×10-3 Green light ≥2.35×10-3 Orange light ≥2.13×10-3

8.Wavelength range: Red light: 680±2nm; Blue light: 420±2nm; Green light: 510±2nm; Orange light: 590±4nm

9.PH value (pH): (1) Test range: 1～14 (2) Accuracy: 0.01 (3) Error: ±0.1

10.Salt content (conductivity): (1) Test range: 0.01%～1.00% (2) Relative error: ±5%

11.Soil moisture technical parameters moisture unit: ･ (g/100g); moisture content test range: 0-100%; error is less than 0.5%

12.Display resolution: 1024*600

13.Seismic resistance level: IP65

14.Instrument size: 48×34.5×22cm

15.Net weight of the host: 5.2kg

7.Soil nutrient Analyzer after-sales service:

The whole instrument is guaranteed for five years, free lifelong maintenance service, free mailing of instruments and free training.

Provide free agricultural-related technical support such as soil and fertilizer for life!

8.Soil nutrient Analyzer configuration list:
