Duct Air Velocity Sensor

1.Product overview of Duct Air Velocity Sensor

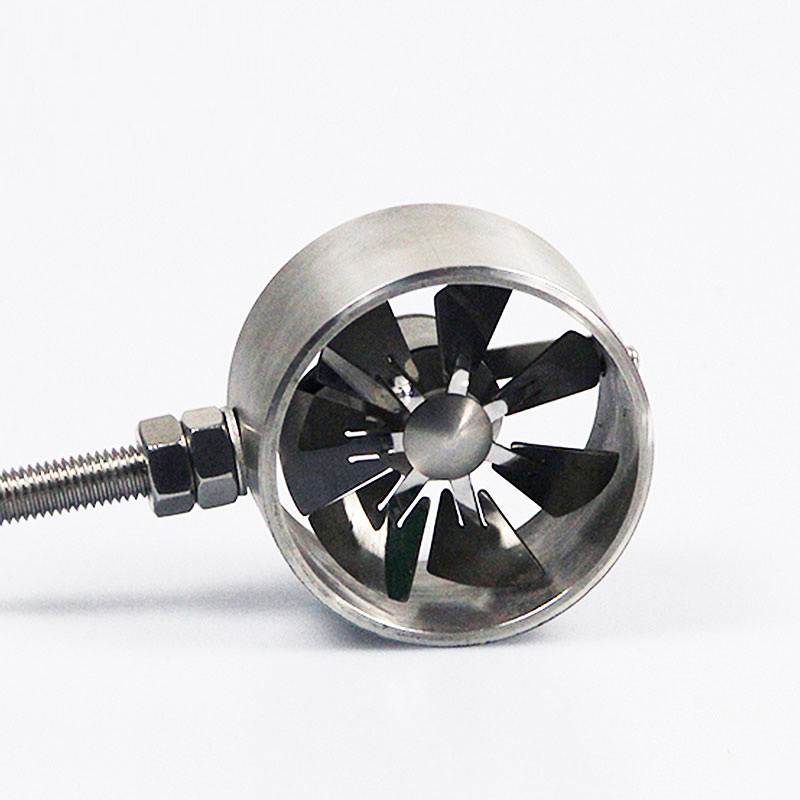

Duct Air Velocity Sensor is an accurate instrument for measuring the velocity of air movement in HVAC systems, clean rooms and other controlled environments.Duct Air Velocity Sensor is a wind speed measuring instrument independently developed and produced by our company.This product consists of a shell, impeller and circuit module, and integrates internal photoelectric conversion mechanism, industrial microcomputer processor, standard current generator, current driver, etc.(This product is divided into pure stainless steel and plastic fan blades for customers to choose from)

The sensor housing and impeller are made of stainless steel and use special mold precision die-casting process.The dimensional tolerance is very small, and the surface accuracy is very high.The internal circuits are all protected.The entire sensor has high strength, weather resistance, corrosion resistance and water resistance.The cable connector is a military plug, which has good corrosion and corrosion resistance, which can ensure long-term use of the instrument.At the same time, it is used in conjunction with the internal imported bearing system of the wind speed sensor to ensure the accuracy of wind speed collection.

The circuit PCB uses military-grade A-grade materials to ensure the stability of parameters and the quality of electrical performance; all electronic components are imported industrial-grade chips, which makes the overall high-reliability of electromagnetic interference resistance, and can ensure that the host is between -30℃ and +60℃., the humidity can work normally within the range of 35% to 85% (no condensation).

2.Duct Air Velocity Sensor application scope

This product can be widely used in the fields of construction machinery (crane, crawler crane, door crane, tower crane, etc.), railway, port, dock, power plant, meteorological, cableway, environment, greenhouse, breeding, air conditioning, energy conservation monitoring, agriculture, medical care, Measure wind speed in clean space and other fields, and output corresponding signals.

3.Technical parameters of Duct Air Velocity Sensor

Output type: RS485 communication type

Power supply: DC12-24V

Range: □0-20m/s or □0-30m/s (maximum)

Accuracy: ±5%

Wind speed resolution: 0.1m/s

Starting wind power: 0.3m/s

Communication protocol: MODBUS-RTU

Additional instructions: Wind direction detection (This sensor does not have wind direction parameters, and is an optional customized function.This product does not have wind direction detection.If you need wind direction, please explain it and customize it.Add wind direction parameters, and the cost needs to be increased):

When the wind speed is <1m/s, real-time detection of forward or reverse direction

When the wind speed >=1m/s, maintain the last detection value

4.Duct Air Velocity Sensor Functional Features

Since its launch in the market, this product has won praise from users for its excellent quality and excellent performance, and has the following characteristics:

1.The appearance structure is reasonable, beautiful and generous, small in size, easy to carry and easy to install.

2.High measurement accuracy, wide range and good stability.

3.It has strong corrosion resistance and weather resistance.

4.Good dynamic characteristics, strong resistance to external interference, and high measurement accuracy.

5.Low power consumption, long circuit life, and can work stably for a long time.

6.The power supply has a wide adaptability range, good data information linearity, and long signal transmission distance.
