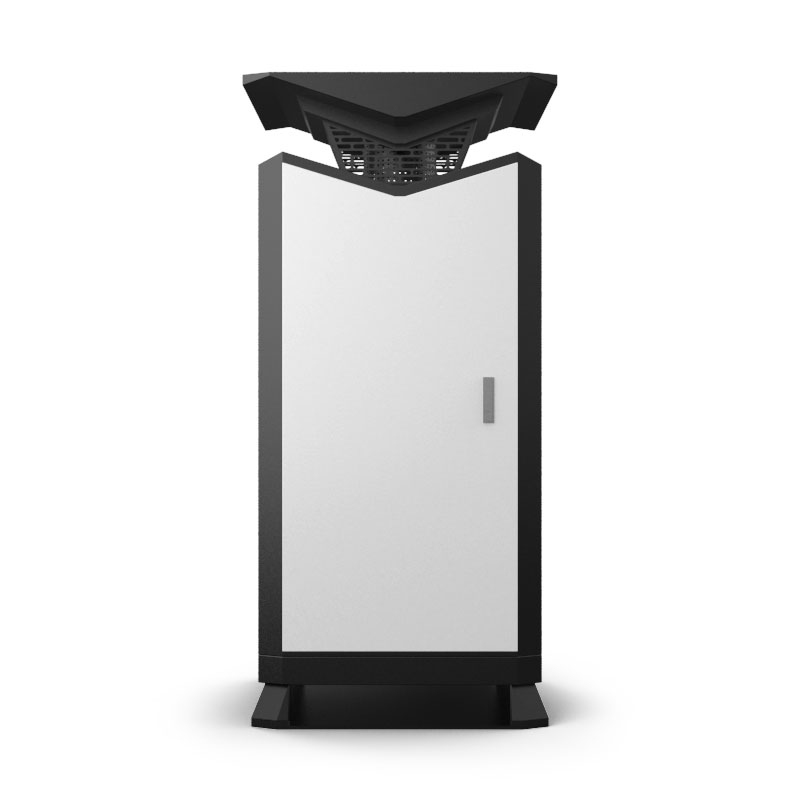

Wheat stripe rust monitor

1.Introduction to Wheat stripe rust monitor

Wheat stripe rust monitor can be used to detect wheat stripe rust in the field and improve the control of wheat and barley stripe rust.Wheat stripe rust mainly harms leaves and leaf sheaths, destroys the synthesis of chlorophyll, blocks grouting, causing wheat yields to be reduced or even lost harvests.Wheat stripe rust monitor is a new type of stripe rust monitoring equipment that integrates meteorological monitoring and intelligent spore capture microscopy.The system collects the growth environment of the wheat planting area and predicts the incidence of wheat stripe rust based on the built-in model of the system.At the same time, the built-in strip rust spore capture device provides unmanned and visual verification methods for the occurrence of strip rust by collecting the spore stocks and diffusion dynamics of strip rust.The equipment is mainly composed of a meteorological information collection device, a spore capture device, a spore carrier device, an image acquisition device, a network transmission module, a power supply and lightning protection system.Realize remote automatic capture of spore information of strip rust, automatic rotation of glass belt, automatic collection, automatic microscopic imaging and photography, automatic upload of picture data, automatic operation and other functions.At the same time, environmental meteorological information and stripe rust disease pictures are uploaded to the designated network platform in real time to form a dynamic comparison database of meteorological environmental information and spore occurrence status, providing a large amount of data support for studying the relationship between stripe rust occurrence trends and meteorological conditions.Provide services for modern agriculture, meet the needs of disease prediction and specimen collection, and prevent and treat the occurrence of diseases in a timely manner.

2.Performance characteristics of Wheat stripe rust monitor

1.Meet the safety requirements and technical requirements of fixed spore capture instruments (instruments) in GB/T 24689.1-2009 (Plant Protection Mechanical Spore Capture Instruments (instruments)).

2.Stainless steel plastic-sprayed shell 15-inch ultra-large high-definition capacitive touch screen, windows operating system, with a good human-computer interactive interface.

3.A 12 million pixel magnification microscopy system can automatically perform high-definition microscopic shooting of captured bacterial spores.The clarity of the captured image can meet the requirements of artificially identifying the species of bacterial spores.

4.The device automatically captures bacterial spores 24 hours a day, automatically captures the captured bacterial spores, and automatically selects the best picture to upload.

5.Fully intelligent automatic microscopy imaging system can automatically adjust the camera's shooting angle to achieve all-round and blind-angle imaging of the glass belt.

6.It can realize the automatic operation of the entire process from glass belt loading, bacteria spore capture, microscopy imaging, and glass belt recycling.

7.Equipped with an extra-long special glass belt, which can meet the dosage of 600 days.

8.It has multiple working modes, automatic operation mode, timing operation mode, and debug operation mode can be switched and used freely.

9.The built-in Beidou/GPS positioning function can upload device information to the platform in real time and view current device parameters on the map.

10.It can monitor a number of strip rust monitoring indicators such as air temperature and humidity, atmospheric pressure, wind speed, wind direction, and rainfall in real time, and predict the occurrence of the strip rust model inside the system.

11.You can use the platform and APP control equipment to enter, collect, microscopy imaging, and recycling.

12.Remote upgrade and maintenance: The latest programs can be automatically updated remotely without manual replacement.

13.Various data access methods: you can access the platform through the PC, view data through the mobile APP, and control device actions.

14.The 4G communication module is standard and the 5G communication module can be optionally equipped.

15.It has a fault self-diagnosis mechanism, and equipment failure information can be reported to the remote server in real time.After-sales personnel can view equipment failure information through the platform.

16.It can be equipped with an intelligent solar power supply management system, which can collect key information such as equipment electricity consumption, solar power generation, battery voltage, equipment load, current, etc.to upload to the server (optional).

17.It has flow alarm function.The device can be bound to the traffic card through the platform, and alarm information can be automatically pushed when the traffic is abnormal.

3.Technical parameters of Wheat stripe rust monitor

1.Material: GB32080-92 stainless steel;

2.Data transmission method: 4G/5G network (optional), wired network;

3.Power supply voltage: AC 220V±5%;

4.Power: 200W;

5.Timing: 5 time periods can be set;

6.Glass belt: Length: 150M Width: 0.025M It can meet the dosage of 600 days;

7.Wind speed at the air collector: 0.3～5 m/s;

8.Insulation resistance: ≥2.5MΩ;

9.Air temperature: -30~80℃, accuracy: ±0.3℃

10.Air humidity: 0~100%, accuracy: ±3%

11.Wind speed: 0~30m/s, accuracy: ±0.1m/s

12.Wind direction: 0-359° Accuracy: ±1°

13.Rainfall: 0～4mm/min, error: ±0.1mm

14.Atmospheric pressure: 0-1100hpa, accuracy: 0.1hpa
