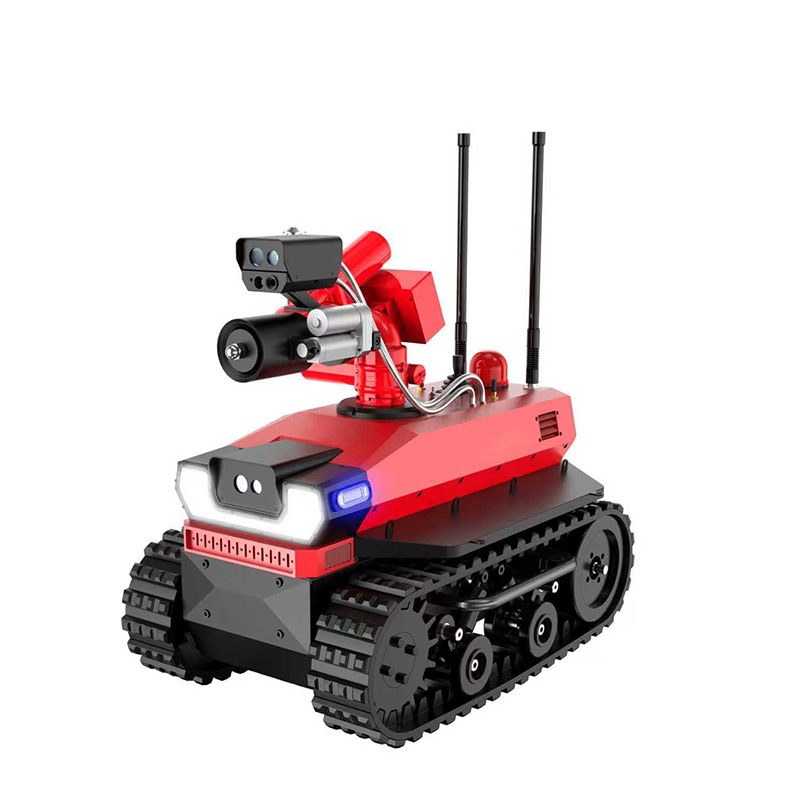

Robotics in Firefighting

Robotics in Firefighting product Introduction

Robotics in Firefighting involves extinguishing fires, conducting reconnaissance, and handling hazardous chemical situations, entering dangerous areas to suppress flames and deal with hazardous materials.

1.Main Application Scenarios: Used for firefighting in various special and confined spaces.

2.Structural Composition: Consists of a robot chassis, robot superstructure, fire monitor, remote control, and other components.

3.Robot Functions: The robot has functions such as firefighting, environmental reconnaissance, lighting, two-way communication, and voice broadcasting.★

4.Dimensions and Weight: Overall weight ≤ 100kg (including battery), dimensions ≤ 800mm (length) x 600mm (width) x 800mm (height).

5.Straight-line Speed: Straight-line speed on level ground ≥ 1.0m/s, speed control mode: control range: 0-3.6km/h, continuously variable speed.

6.Terrain Adaptability: The robot uses track drive, with ≥2 drive wheels, capable of turning in place; climbing ability ≥ 30°, tipping angle: ≥ 30°.

7.Maximum Traction Force: ≥ 110kg.

8.Fire Monitor Technical Requirements: Maximum flow rate (water) ≥ 20L/s; maximum range (water) ≥ 30m; equipped with ≥ 2 spray modes: columnar spray and mist spray; horizontal rotation angle: left -30° to right +30°; pitch angle: 0° to +70°, self-swing angle adjustment range: left -20° to right +20°; rated working pressure: 0.8MPa, working pressure range: 0.8~1.2MPa.★

9.Limit Device: Limit devices are installed at the start and end points of the moving joints of the on-board equipment.The limit devices should reliably stop the movement under rated load or maximum speed without overshooting.

10.Mechanism Movement: The pitching, rotating, and transmission mechanisms of the on-board equipment should operate flexibly, safely, and reliably.

11.Water Hose Detachment Device: Equipped with a remote water hose detachment device, allowing for one-button remote detachment of the water hose.12.Dual-camera technology requirements: Infrared thermal imaging detector pixel resolution ≥ 384x288, field of view ≥ 48°×38°; visible light detector pixel resolution ≥ 1920×1080, field of view ≥ 90°×48°; equipped with AI recognition function, AI recognition distance ≥ 20m, recognition types ≥ 3 (people, vehicles, fire sources), and capable of marking distances; video screen with driving assistance lines; number of infrared thermal imaging detectors ≥ 2, number of visible light detectors ≥ 2; equipped with laser ranging function, detection distance ≥ 150m; equipped with auxiliary green light fire point positioning function, positioning distance ≥ 150m.★

13.Lighting and warning functions: Equipped with front and rear lights, front light (white light) with ≥ 20 LEDs, rear light (yellow light) with ≥ 8 LEDs; equipped with red and blue flashing lights, ≥ 8 LEDs; equipped with sound and light alarm lights, meeting the requirements for providing a certain level of illumination and warning in the fire fighting operation area.★

14.Leakage detection function: Detection voltage range 120V/60Hz or 220V/50Hz or 380V/50Hz; 7.2kV/50Hz or 15kV/50Hz, no contact with the power source required, capable of detecting leakage in traditional unshielded power lines ≥ 150 meters away and 120V/240V/380V lines ≥ 5 meters away.★

15.Gas detection function: capable of detecting ≥ 8 types of gases.★

16.Remote control functions: Supports horizontal and vertical adjustment of the water cannon, supports forward and backward movement and left and right steering control of the vehicle body, speed adjustment, has a voice communication function, supports switching on and off of front and rear lights, and has functions such as screen switching, mode selection, and page turning; the main screen displays ≥ 2 split screens, capable of displaying real-time images from the water cannon and vehicle body dual-camera; the secondary screen can display working condition information such as toxic and combustible gas concentration, leakage detection status, temperature, laser ranging values, and latitude and longitude.The remote control weighs ≤3kg and features a portable lanyard and hook; it has ≥2 screens, with the main screen size ≥7 inches and resolution ≥1280*800, and the secondary screen size ≥2.5 inches and resolution ≥480*320.★

17.Wireless transmission distance ≥800m.★

18.Built-in rechargeable battery, continuous working time ≥4 hours.

19.Protection level ≥IP65.

20.Provide a test report issued by a national-level testing and inspection institution, and the report should be complete and valid.
